Batch Smooth (BatSmo)

Type: Batch Application



Smooths existing lines by placing Spline or B-Spline points on the lines.

Detailed Description

Searches for lines within the layers specified,  smooths the lines using a Spline or B-Spline method with user specified smoothing parameters.

Layers that are turned off will not be considered even if they are specified.


Key-in

Description

Range

PARFIL=

Load parameter file

Batch Smooth parameter file name (.bsm)

RUN

Run Batch Flow



WSTC=

Workspaces to consider

0=Current 1=All open

SEALAY=

Layers to search

Num Line

SMOMOD=

Smoothing mode

0=Spline 1=B-Spline)

SPLSHO=

Spline chord length (in|mm)



BSPLMOD=

B-Spline increment

1-10

Example

BatchSmooth_Before

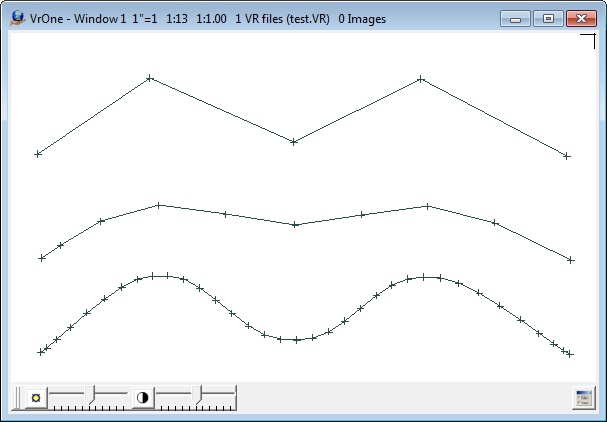

This illustrates a line before and after running Batch Smooth. The top line is the original line with four points. The middle line was processed using a Smoothing method of B-Spline and a B-Spline increment of 2.0. The bottom line was processed using a Smoothing method of Spline and a Spline chord length of 0.06.

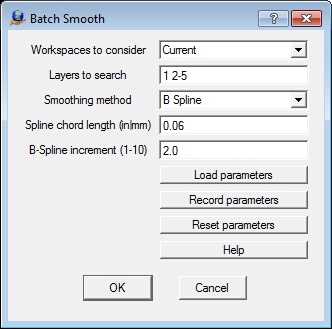

Parameters for Batch Smooth

BatchSmooth_Params

Workspaces to consider

Defines the workspaces to consider. Options are Current workspace or All open workspaces.

Layers to search

Defines the layers to search that contain lines to be processed. This parameter may be entered as a number line.

Smoothing method

Specifies the smoothing method to apply to the lines. This can be either B-Spline or Spline.

Spline chord length (in|mm)

If Spline smoothing method is chosen, this specified the chord length to use when placing spline points.

B-Spline increment (1-10)

If B-Spline smoothing method is chosen, this specified the B-Spline increment to use when placing B Spline points.
