Delete Arc Flags (DelArc)

Type: Batch Application



Deletes arc flags on lines.

Detailed Description

VrOne stores arcs as a line with a series of line segments. This method allows arcs to be embedded in lines and creates a three-dimensional edge when storing the arc. The arc on the line is defined by a series of flags marking the beginning, middle and end points of the arc. These arc flags may be removed with Delete Arc Flags. NOTE: After removing the arc flags, the arc may not be edited as an arc and arcs cannot be generated when translating to AutoCAD or Microstation. The area of arc will be represented as a series of line segments.

Available Key-ins

Key-in

Description

Range

PARFIL=

Load parameter file

Delete Arc Flags parameter file name (.dar)

RUN

Run Delete Arc Flags

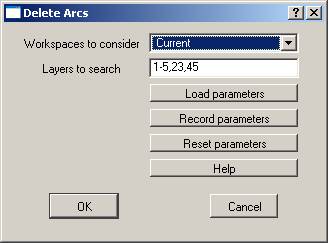

Parameters for Delete Arc Flags

DelArcFlags_image002

Workspaces to consider

Defines the workspaces to consider when running Delete Arc Flags. Options are Current workspace or All open workspaces.

Layers to search

Defines the layers to search that contain lines in which the arc flags will be removed. This parameter may be entered as a number line.
