Insert Text

Places text interactively or from another Function Key. When used interactively, a rich set of options enable precise text placement in most situations. When run from another Function Key, options allow the application to be started and a text label to be placed without user intervention. Text labels are typed in using a dialog box, keyed-in from the key-in area, or drawn from a text file.

It is possible to place text along an existing VrOne line (base line) as “curved text”. In this mode, each text character will be placed as a single entity. The “Place Curved Text” mode is turned on the “Curved Text Search Distance” is set to enable this feature. The curved text direction and character rotations will be based on the direction of the base line. If the display North is up and a line is increasing from right to left then the text will be upside down in reference to the viewer. Lines in layers that are turned off will not be considered when searching for lines along which to curve text. Curved text can be offset from the baseline.

Key-in	Description	Range
LAY=	Layer number	1-10001
GRP=	Graphic pointer	1-60
PEN=	Pen number	1-256
CON=	Construction flag	0-1
NGR=	Non graphic pointer	32 bit
LNK=	Link number	32 bit
FC=	Feature code	48 characters
FNT=	Font number	1-12
JX=	Justification X	1=Lower 2=Center 3=Upper 4=Decimal
JY=	Justification Y	1=Left 2=Center 3=Right
HGT=	Text height	Inches \| Mm
WDT=	Text width	Inches \| Mm
SIZE=	Text height and width	Inches \| Mm
ROT=	Text rotation	0-360 degrees
SLT=	Text slant	0-180 degrees
TXT=	Text label	511 characters
=	Text label	511 characters
OFSX=	Text offset X	Inches \| Mm
OFSY=	Text offset Y	Inches \| Mm
OFSZ=	Text offset Z	Inches \| Mm
SNAMOD=	Snap mode	0=Snap point as normal 1=Get elevation only when snapping
ZMOD=	Elevation for text entity	0=Use current elevation 1=Use saved elevation
COPZ=	Copy the elevation to the text label?	0=No 1=Yes
DECACC=	Decimal accuracy to use when copying elevation to text label	0-10
PROMOD=	Prompt for text label (0=No 1=Yes)	0=No 1=Yes
INCVAL=	Value to increment numeric text label after each save	Double precision
CURTEX=	Curve text along existing line	0=No 1=Yes
CURDIS=	Curved text search distance	Ground units
CUROFF=	Curved text offset distance from base line	Inches \| Mm
RUNONCE=	Exits insert text after one text label has been placed	0=No 1=Yes
DIG=	Places symbol at location supplied	X Y Z
DIGLAST	Places text at the saved coordinate.	None

NOTE: Each time Insert Symbol saves a symbol, it stores the location of the symbol as the saved coordinate. The saved coordinate may be used here as the last elevation for the Z Mode parameter or the last coordinate for the Digitize Last command.

Sets the current text label. This is a shortcut for the Txt= key-in. The two following key-ins have the same meaning:

Places the text the distance specified in inches or millimeters from the digitized point. These parameters are often used to place text next to another object, like a symbol.

Specifies the coordinate axis to get when snapping. If the Snap Mode were set to “Get elevation only” then it would be possible to snap to an existing symbol and retrieve its elevation only. This can be used to place the elevation of a spot elevation ‘X’.

Defines the source of the elevation for the text label. Elevation can be set to the current elevation (0) or to the elevation of the last symbol placed (1).

Determines whether the text entity's elevation is copied to the text label. This is necessary when labeling spot elevations.

Specifies the number of places to the right of the decimal point that are included in an elevation level if Copy Z is enabled.

Specifies whether Insert Text prompts for a new text label when the function is called and after each label is saved.

If the current text label is a numeric value, specifies a value to add to it each time it is saved. This is useful when labeling items that are sequential numbers. Increment Value may be an integer or double precision number. A value of zero turns this feature off.

Turns the curve text placement mode on or off. If this mode is on and the digitized text location is within the “Curved text search distance” (see below) of an existing line, the text will be placed along that line. Each text character will be placed as a single entity.

Specifies in ground units the line attach search distance to existing lines when placing curved text along an existing line. See “Place Curved Text” above.

Specifies the distance to offset curved text from the base line. A negative number will offset the text to the left of the base line and a positive number will offset the text to the right. This parameter is entered in Prompting Units which is inches or millimeters (in|mm).

Specifies whether Insert Line will exit after a text label has been placed. Setting RUNONCE to 1 is the same as placing the Pop command as the On-end command in a function key that starts Insert Line. For consistency, the Pop command should be used instead of this parameter.

Places the current text label at the saved coordinate position. This command is used when a symbol function key calls Insert Text and places a text label without any user intervention.

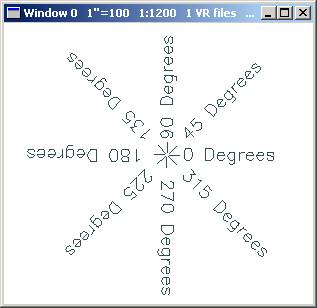

Rotates text in degrees counterclockwise, with the X-axis representing 0ͦ as shown below.

	Button	Description
1	Digitize	Digitizes the text origin.
2	Rotate	Rotates the text label. Starts Rot menu.
3	Expand	Expands or shrinks the text label. Starts Expand menu.
4	File text	Allows text to be input from file. Starts File menu.
5	Justification	Sets text justification. Starts Just menu.
6	Enter text	Enter text label from dialog box.
7	Enter params	Enter parameters from dialog box.
8	Dig rotation	Sets text label rotation from two digitized points.
9	Enter offsets	Enter XY text label offsets from dialog box.
*	Menu board	Make selection from the Menu board.
0	Toggle snap	Toggles snap on/off.
#	End	Ends application.

	Button	Description
1	Accept rot	Accepts current rotation. Returns to Main menu.
2	Dig 1 point	Digitizes the text rotation based on the text origin and the current XY position.
3	Dig 2 points	Digitizes the text rotation based on two digitized locations.
4
5	Rotate - fine	Rotates text label counterclockwise 1 degree.
6	Rotate + fine	Rotates text label clockwise 1 degree.
7	Zero rotation	Sets current text label rotation to zero.
8	Rotate 45 deg	Rotates text label 45 degrees.
9	Rotate 90 deg	Rotates text label 90 degrees.
*
0
#

	Button	Description
1	Accept size	Accepts current size. Returns to Main menu.
2	Shrink	Shrinks the current text label size by 1%.
3	Expand	Expands the current text label size by 1%.
4
5
6
7
8
9
*
0
#

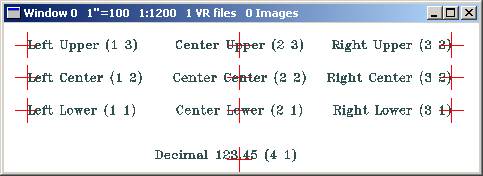

	Button	Description
1	Upper left	Sets the current text label justification to upper left (3,1).
2	Upper center	Sets the current text label justification to upper center (3,2).
3	Upper right	Sets the current text label justification to upper right (3,3).
4	Center left	Sets the current text label justification to center left (2,1).
5	Center center	Sets the current text label justification to center center (2,2).
6	Center right	Sets the current text label justification to center right (2,3).
7	Lower left	Sets the current text label justification to lower left (1,1).
8	Lower center	Sets the current text label justification to lower center (1,2).
9	Lower right	Sets the current text label justification to lower right (1,3).
*
0	Decimal	Sets the current text label justification to decimal (1,4).
#	End	Ends this menu and returns to the Main menu.

It is possible to obtain text labels from a text file. This is useful when labeling items such as coordinate lists.

	Button	Description
1	Digitize	Digitizes the current text label.
2	Open file	Opens a text file.
3	Close file	Closes the current text file.
4	Next line	Retrieves the next line from the text file.
5
6
7
8
9
*
0	Toggle snap	Toggles snap on/off.
#	End	Ends File menu and returns to the Main menu.
