Vr Symbols to/from VrPoints (SymPoi)

Symbols-Points01     Symbols-Points02

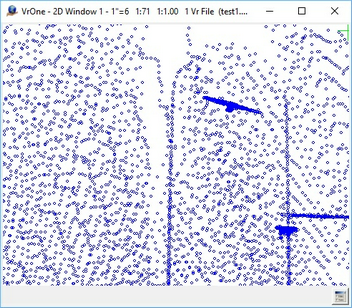

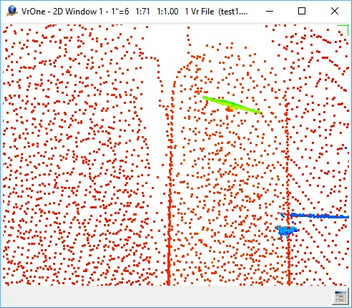

VrPoints (left) converted to Vr Symbols (right)



Type: Batch Application



Converts Symbols to or from VrPoints.

Detailed Description

VrPoints are typically used to define point cloud items such as LiDAR points and DSM (Digital Surface Model) points. For more information about VrPoints, see VrPoints Data Structure. The Symbols to/from VrPoints batch application converts between the two data types.



While there are some common attributes between the two data types such as x,y,z, and layer, much of the attribute data is lost in the conversion. Also, Vr Symbols were not intended as mass storage for point cloud data and contain larger attribute data than do VrPoints. Conversions of large amounts of VrPoints to Vr Symbols can cause very large file sizes and slower software run times.



NOTE: It is strongly recommended that the VrOne files to be converted are backed up before running this batch application.

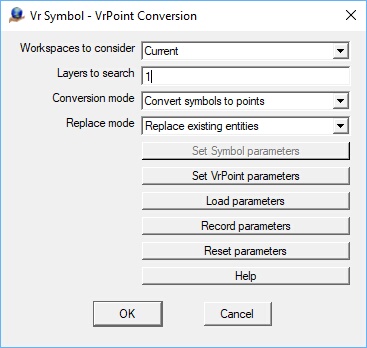

Parameters for Vr Symbols to/from VrPoints

Symbols-Points03

Workspaces to consider

Defines the workspaces to consider when running this batch application.

Layers to search

Defines the layers that are to be searched for Vr Symbols or VrPoints and converted. A number line may be used to define the layers. Layers that are turned off will not be considered even if they are specified.

Conversion mode

Defines the conversion direction from Vr Symbols to VrPoints or VrPoints to Vr Symbols.

Convert symbols to points - Vr Symbols will be searched for and converted to VrPoints.
Convert points to symbols - VrPoints will be searched and converted to Vr Symbols.

Replace mode

When converting between data types, this option defines if the original Vr Symbols or VrPoints will be deleted.

Replace existing entities - The original Vr Symbols or VrPoints, will be deleted.
Add as new entities - The original Vr Symbols or VrPoints will not be deleted and new entities will be added to the VrOne database resulting in a Vr Symbol and a VrPoint at the same location.

Set Symbol parameters

Allows the entry/edit of the Vr Symbol parameters when the "Conversion mode" is set to "Convert points to symbols".



Symbols-Points04

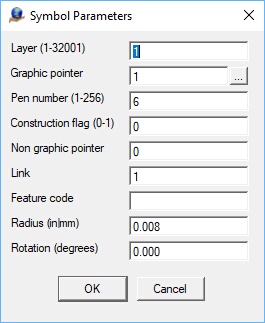

Vr Symbol parameters

Set VrPoint parameters

Allows the entry/edit of the VrPoint parameters when the "Conversion mode" is set to "Convert symbols to points". VrPoints contain up to 16 parameters (attributes) for each point and the conversion to VrPoins allows the definition of only six of these parameters.



Symbols-Points05

VrPoint parameters (attributes)

Load parameters

Allows the current translation parameters to be recorded to a user defined file.

Record parameters

Loads the translation parameters from a previously recorded parameter file.

Reset parameters

Resets the translation parameters to default values.

Help

Displays this help page.

Available Key-ins

Key-in

Description

Range

WsTc=

Workspaces to consider

0 - Current

1 - All

SeaLay=

Layers to search

Number line

ConMod=

Conversion mode

0 - Convert symbols to points

1 - Convert points to symbols

RepMod=

Replace mode

0 - Replace existing entities

1 - Add as new entities

SymLay=

Symbol Layer

1-32001

SymGp=

Symbol Graphics Pointer

1-1000

SymPen=

Symbol Pen Number

1-256

SymCon=

Symbol Construction Flag

0-1

SymNp=

Symbol Non-Graphic Pointer

0-65535

SymLnk=

Symbol Link

0-65535

SymFc=

Symbol Feature Code

Up to 48 characters

SymRad=

Symbol radius

Symbol radius in ground units

SymRot=

Symbol rotation

Symbol rotation in degrees (counterclockwise, 0=X axis)

PoiLay=

VrPoint Layer

0-255

PoiCla

VrPoint Classification

0 - Move entities to DTM or other lines

1 - Duplicate entities to DTM or other lines

PoiKey=

VrPoint Keypoint flag

0-Point is not a Keypoint

1-Point is a Keypoint

PoiFlt=

VrPoint flight number

0-255

PoiSou=

VrPoint source Id

0-65535

PoiSen=

VrPoint sensor number

0-7

ParFil=

Load existing parameter (.syp) file

Parameter file name

(i.e. c:\jobs\myjob\convert.syp)

Run

Run this batch application





Document updated: December 2017
