Tile Points (TilPoi)

Type: Batch application



Tiles VrPoints (LiDAR) from multiple VrOne files and creates new VrOne files.

Detailed Description

Tile Points is useful when LiDAR data management requires a project or group of files to be arranged in a manageable tile format.  Multiple VrOne files containing VrPoints (LiDAR) are used as input and new VrOne files are created with each new file containing one geographic tile of point data.

Available Key-ins

None

Parameters for Tile Points

On starting Tile Points, a dialog is displayed in which the input VrOne files are defined.

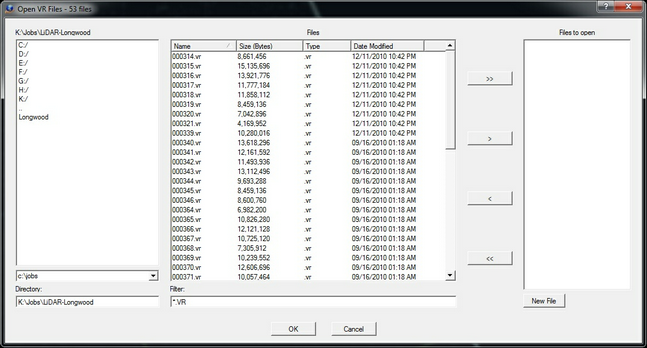

TilePoints01

VrOne input file selection dialog



Select the VrOne files to use as input for the tiling process.  Multiple files may be selected.  Any files that are currently open in VrOne or VrTwo will be closed before the tiling process starts.

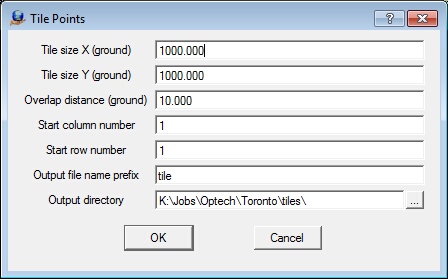

TilePoints02

The Tile Points parameter dialog

Tile size X (ground)

Defines the tile size for the X axis in ground units.

Tile size Y (ground)

Defines the tile size for the Y axis in ground units.

Overlap distance (ground)

Tiles will overlap adjacent tiles by this amount and the data in the overlap areas will be duplicated.

Start column number

The new VrOne files that are created from this process will contain a file name prefix and the column (X) and row (Y) number for each tile.  This parameter defines the start column number.

Start row number

The new VrOne files that are created from this process will contain a file name prefix and the column (X) and row (Y) number for each tile.  This parameter defines the start row number.

Output file name prefix

Defines a file name prefix for the output file names.

Output directory

The files created by Tile Points may be placed in a user defined directory. The directory must exist before running this batch application.



Once the parameters are entered and OK is pressed, the tiling process is performed.  The start coordinates for the tiling are rounded in the X and Y direction to an even interval of the tile size and the results are displayed in the Command Prompt window.  The following is an example of the results from Tile Points.



Coordinate Range

Minimum             461082.050     3170998.270     10.660

Maximum             469082.040     3177998.260    104.980



Start Tile          461000.000     3170000.000

Number columns 9

Number rows    8

Number tiles   72



The output file names consist of the file name prefix and the column and row numbers such as:



Tile001001.vr

Tile001002.vr

Tile001003.vr

Tile001004.vr

Tile001005.vr

Tile001006.vr

Tile001007.vr

Tile001008.vr

Tile002001.vr

Tile002002.vr

Tile002003.vr

Tile001004.vr

...
