Delete Node Flags (DelNod)

Type: Batch Application



Deletes node flags on lines.

Detailed Description

When lines are noded using Batch Node (BatNod), the noded end points are flagged. The node flag is stored in bit 4 (ASCII 16) in the line point flag parameter. When this flag is set subsequent runs of Batch Node ignore these end points. Delete Node Flags remove these node points from the lines in the layers specified.

Available Key-ins

Key-in

Description

Range

PARFIL=

Load parameter file

Delete Node Flags parameter file name (.dar)

RUN

Run Delete Node Flags



Parameters for Delete Node Flags

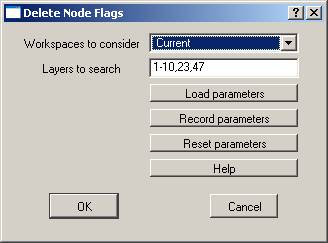

DelNodeFlags_image002

Workspaces to consider

Defines the workspaces to consider when running Delete Node Flags. Options are Current workspace or All open workspaces.

Layers to search

Defines the layers to search that contain lines in which the node flags will be removed. This parameter may be entered as a number line.
