Digitize Control (DigCon)

Type: Interactive Application



Digitizes control points from current input device and places them into a control file. Options include the ability to open, close, create and edit control files. Before each point is saved a name may be added and any coordinate may be changed. Duplicate point names are not allowed in Digitize Control.

Local Commands

None

Button Assignments

Dig Control - Main



Button

Description

1

Dig point

Digitizes a coordinate to be placed in the current control file.

2

Open file

Opens an existing control file.

3

Close file

Closes the current control file.

4

Create file

Creates a new control file.

5

Update file

Updates the current control file to disk.

6





7

Edit coords

Allows editing of the current control file.

8





9





*





0

Toggle snap

Toggles snap on/off.

#

End

Ends application.

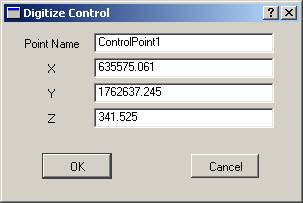

When a control point is digitized, a dialog box will show the current point name and the digitized coordinate position. Any of these fields may be edited before accepting the coordinate position. Duplicate point names are not allowed in Digitize Control.
