Inherit (Inh)
Type: Interactive Application
Inherit allows entity properties to be copied from one existing entity to another. An existing "source" entity is first identified. The source's properties are copied to any subsequently identified "target" entities. Lines, symbols, and text are supported. Parameter settings allow for selection of the properties to be transferred. When a target entity is identified, properties are copied without verification. If a mistake is made, undo can be used to reestablish the entity to its previous state.
Local Commands
Key-in |
Description |
Range |
SEALIN= |
Sets line searching |
0=No 1=Yes |
SEASYM= |
Sets symbol searching |
0=No 1=Yes |
SEATEX= |
Sets text searching |
0=No 1=Yes |
Button Assignments
Inherit – Id Source
Button |
Description |
1 Id source |
Identifies a source entity. The current search mode will determine the entity types that will be searched for. |
2 Cycle ent type |
Cycles entity type from Lines to Symbols to Text. |
3 |
|
4 Toggle lines |
Toggles searching for lines. |
5 Toggle symbols |
Toggles searching for symbols. |
6 Toggle text |
Toggles searching for text. |
7 Params |
Edits the entity properties to be transferred. |
8 |
|
9 |
|
* |
|
0 |
|
# End |
Ends application. |
Inherit – Id Target
Button |
Description |
1 Id target |
Identifies a target entity. |
2 New source |
Returns to ID Source menu. |
3 Undo |
Applies undo to the last operation. |
4 |
|
5 |
|
6 |
|
7 |
|
8 |
|
9 |
|
* |
|
0 |
|
# End |
Ends application. |

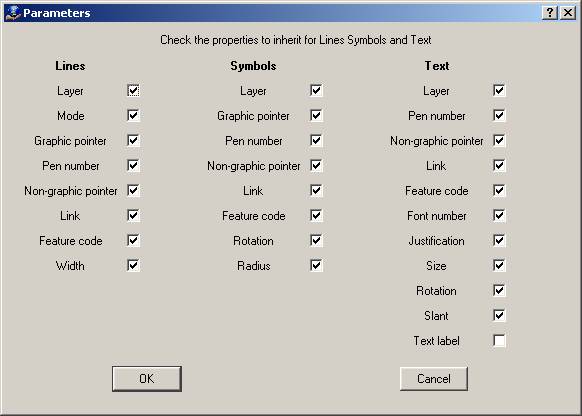

Parameters may be entered by pressing button 7 when the Id Source menu is active.
Parameters determine the properties for each entity type that will be copied when a target entity is identified. These settings are remembered each time Inherit is started.
